features

*1 Engine immobilization
*2 Automatic arming after ACC off 60 seconds
*3 Manual arming through keypad
*4 Manual disarming through keypad
*5 Disarming code can be changed
*6 Special code (number 1-5) and service code
*7 Code leaning

INSTRUCTION MANUAL

First default password*5341.Primary password from the manufacturer, required to change immediately after installation

Disarm:
1)Enter*password*, the keypad will beep twice, within 60 seconds, turn ACC to ON, the LED will be off and the system is disarmed.

2)The keypad will beep once at each press on the button. After password is entered and , if the password is correct, the keypad will beep twice: if the password is wrong, the keypad will beep three times.

3)When entering the password, if you press wrong button, you need to stop press buttons, and then Returns the correct password from the beginning including the star button.
The keypad will be locked for 3 minute if you have entered password wrongly for three times ( continuously). The star buttons will flash fast and beep every 5 second. After the 3 minute it will long beep mines keypad get out of look mood.

Arm:
A)Active arming: 60 seconds after ACC OFF, the LED will be On all the 60 second. The system will enter armed status automatically and the LED indicator will flash constantly.
B)Passive arming:
1）ACC OFF, press * for 2 seconds, the keypad will give long beeps to indicate the system is armed and the LED indicator will flash constantly.

Modify password:
Armed mode, enter the default or your old password *_ _ _ _. Open ACC ON, enter twice new password *_ _ _ _BIP*_ _ _ _ the keypad will beep Melody, and the LED WILL OFF, the password is modified successfully.
New password can be ( * + 4 digit), You can not put same digits as 11, 22,
*5341 , open ACC ON , twice *new password *_ _ _ _ bip *_ _ _ _ bip bip

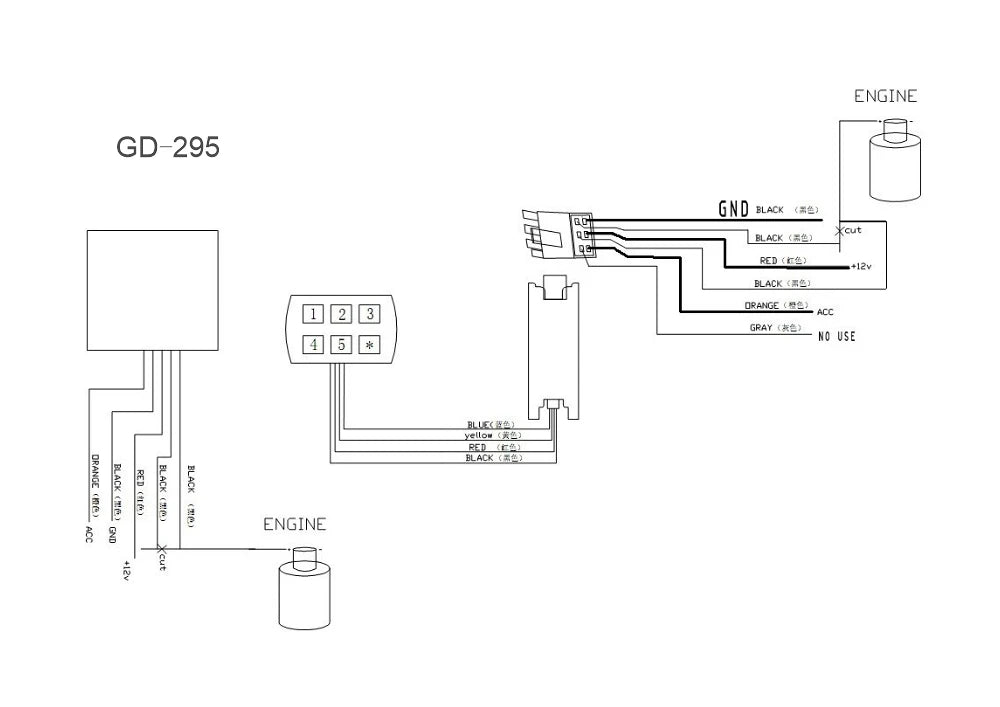

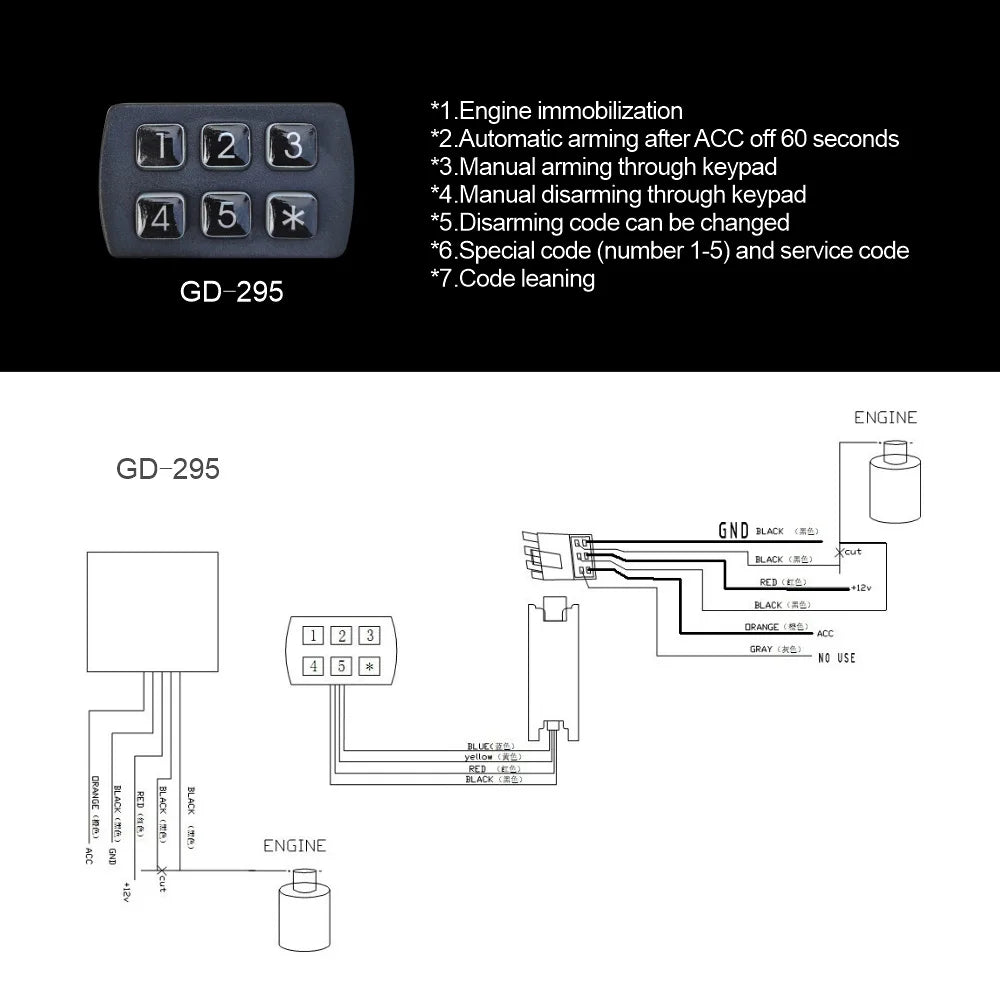

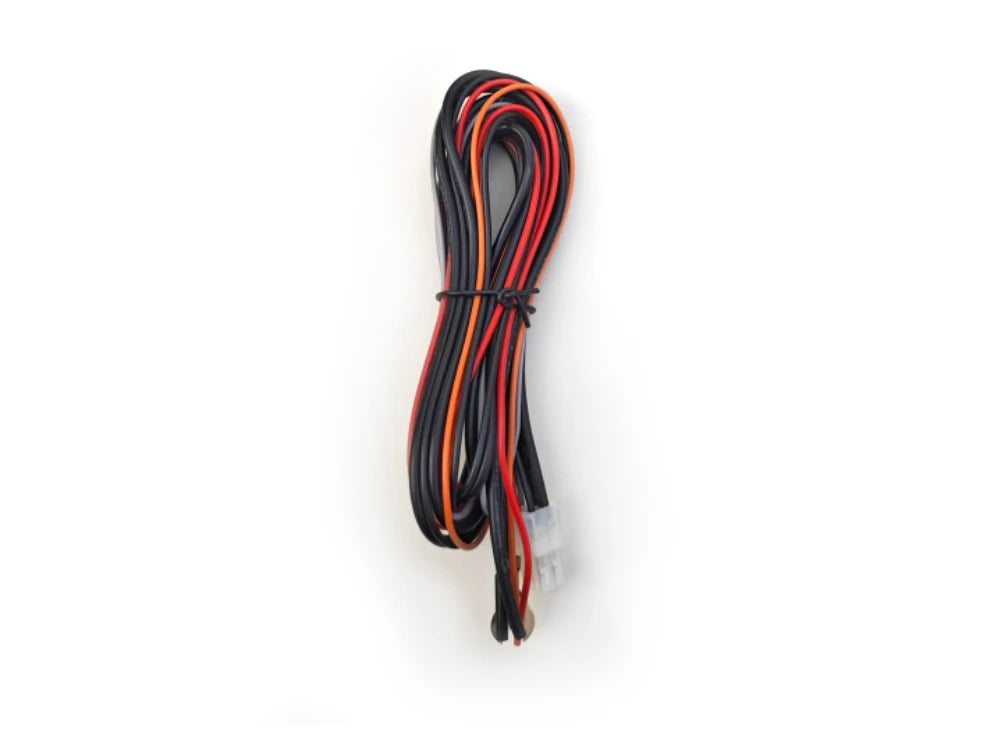

The connection for wires:
RED: 12V+
ORANGE: ACC INSPECTION
BLACK: 12V-


GREY:ARM(-)
