Smart Home Central Control Panel
8 Pro Android 11 Audio In Wall Amplifier Built-in Alexa BLE Mesh Zigbee Gateway IR
SPECIFICATIONS
Brand Name: MAKERIGH
Communication method: Zigbee,Wi-Fi,IR
Enter: 100-240VAC , 50/60Hz
Hign-concerned Chemical: None
Inbox adaptor: No
Operating Humidity: 5%-90% RH (non-condensing)
Operating Temperature: 0~40℃
Origin: Mainland China
Power Source: AC,AC
Product Name: Smart Control Panel 8 Pro
Resolving power: 1440*720, IPS
SKU: FKT0349
Size: 127.5*233.5*38mm
Wireless Protocol: Wi-Fi 2.4GHz & 5GHz, Bluetooth, Zigbee
8 Inch Tuya Smart Home Central Control Panel 8 Pro Android 11 Audio In Wall Amplifier Built-in Alexa BLE Mesh Zigbee Gateway IR
Product Description

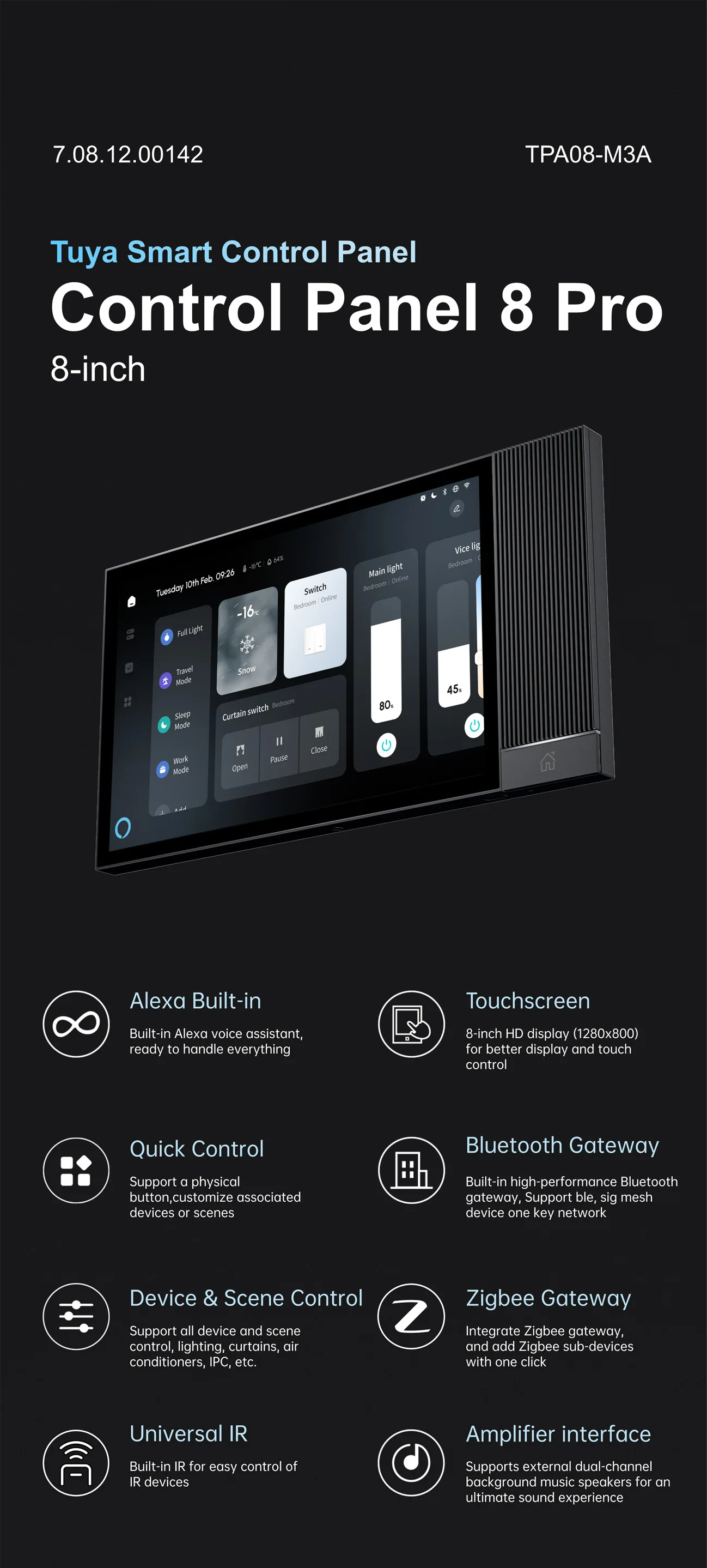

The Smart Control Panel 8 Pro, powered by Android, serves as a gateway, interactive hub,
and scene control panel for the home. Installed in a standard 86 wall box, users can easily
manage connected devices via touch or voice.
As the core of whole-home automation, the Control Panel puts control at your fingertips—
playing music, activating lights and AC when arriving home, or switching to nighttime
security with smooth, responsive interactions across scenarios.
Its 8-inch HD screen offers clear visuals, while built-in high-fidelity speakers and dual
amplifier ports support immersive sound for any mood. Integrating with a voice assistant
enables natural, hands-free control of the entire home, enhancing daily life with ease and
quality
Product Features
1) Zigbee & Bluetooth Gateway
Zigbee and Bluetooth independent chips, integrate Zigbee and Bluetooth gateway
functions, support Bluetooth BLE & BLE mesh sub-devices, and have edge capabilities for
localized control.
2) Device control
Fully compatible device access and diversified control forms are compatible with almost all
Tuya ecological devices.

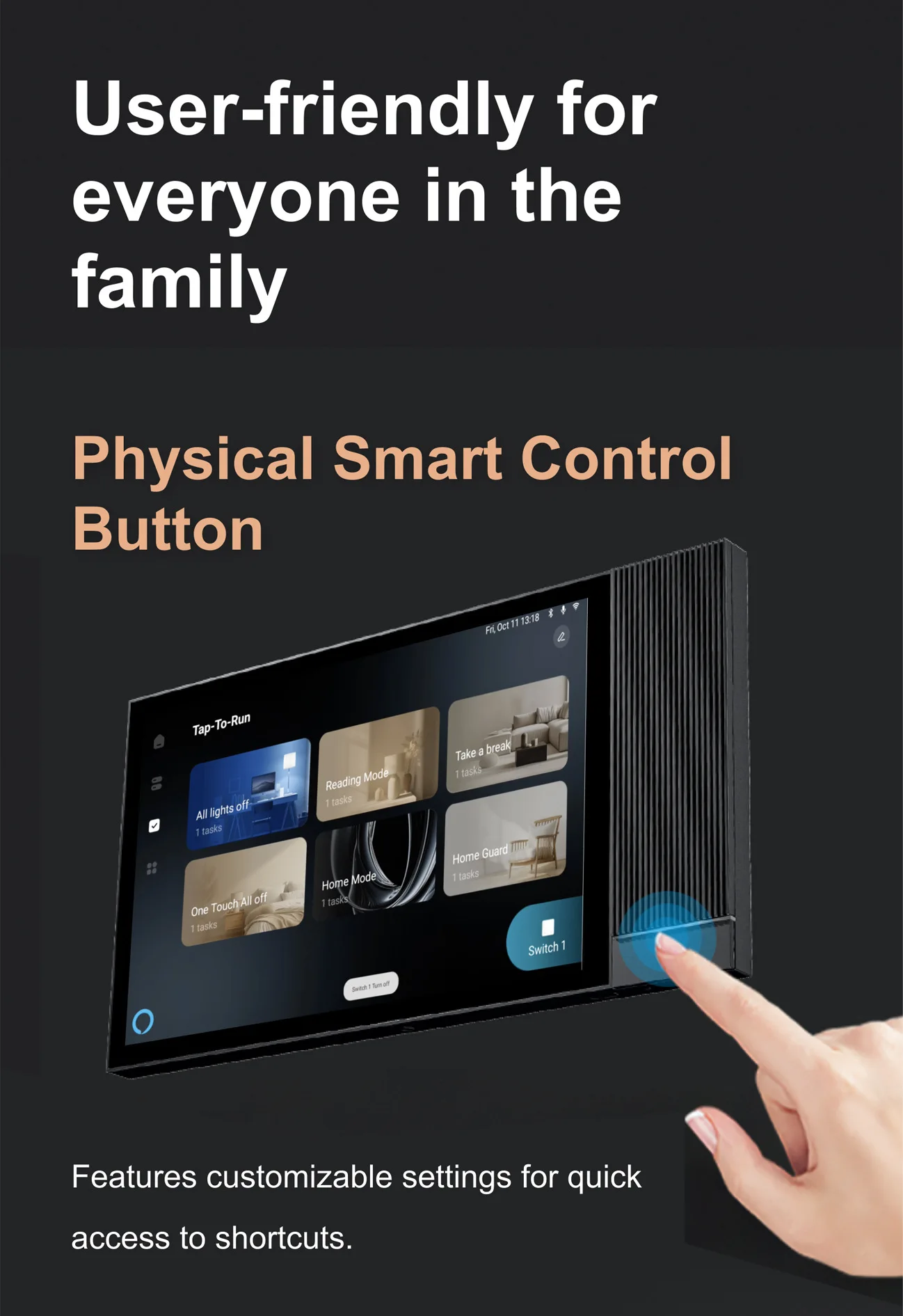

3) Scene control
Custom physical buttons, screen interaction, and voice interaction can trigger scenes to
meet different needs in life.
4) iShare™ Technology
In-depth customization of the interconnection center, support for IPC preview monitoring,
video and voice calls, direct interconnection between central control and central control, as
well as central control and APP.
5) Rich interface
A variety of base forms are supported. The standard base uses zero-fire wire wiring and
supports dual relays, an RJ45 network port, RS485, dual amplifier ports, etc.
6) Online music
You can play music directly on the center control while supporting external Bluetooth
speakers and background music speaker output, enjoying high-quality hi-fi sound.
7) Easy to install
Zero firewire installation with a standard plastic concealed box can complete the intelligent
upgrade.
8) Alexa Built-in
The product has a built-in Alexa Assistant that can check the weather, play music, control
devices, and more in one sentence.

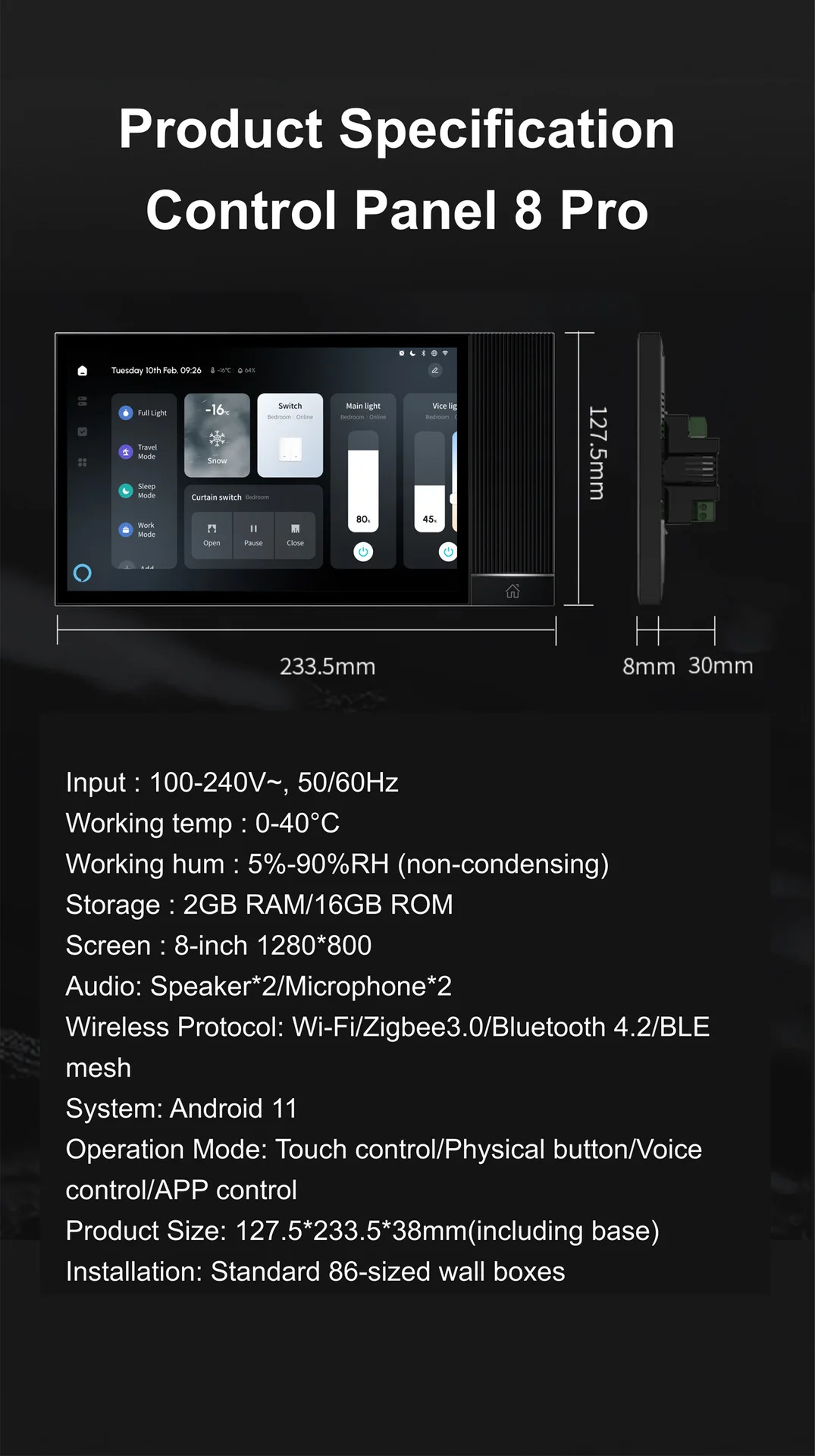

Specifications
Product Type:8 inch Control Panel MAX music system
Strong current input:100 ~ 240 VAC(±10%), 50/60Hz
Screen Size:8 Inches
Resolution:1280*800
CPU:Quad-core high-performance processor
Memory:2+16G
Built-in speaker:2*2W
Voice control:2 Microphone
relay:200VA MAX/2 way
Output Power:2*30W(MAX)
Operating system:Android 11
Support:Bluetooth audio output
Support:RJ45
specification:Built-in ZIGBEE 3.0 gateway
specification:Built-in Alexa
agreement:WIFI,Bluetooths，Zigbee，485
Base size is not included:127.5*233.5*8mm
Base size included:127.5*233.5*38mm
Installation:Standard 86-sized wall boxes
specification:Smart home control
*We do not support the installation of third-party software. TUYA company does not provide ADB passwords or intentions for secondary development.
Installation preparation
1) This product is powered by the neutral wire. Please arrange the neutral wire in
advance;
2) This product is connected to the network through Wi-Fi or Ethernet. Please arrange
the WiFi network or Ethernet cable in advance;
3) If you want to use the relay, RS485, security network port of this product, please preset
the relevant cables in advance;
4) To ensure electrical safety and wireless performance, please use a plastic box that
meets the JB/T 8593 standard or has a depth of more than 40mm.
5) Please bring your screwdriver, test pen, electrical tape, and other tools; please do not
operate with electricity.
Installation Notes
1. In order to ensure the correct use of this product, it must be installed, maintained and
disassembled by a professional electrician.
Before installing and disassembling this product, the main power switch must be cut off
to prevent electric shock.
2.This product should be kept away from fire and water sources during installation and use
and should not be used in humid environments (such as bathrooms).
3.Confirm that the voltage is in line with the working voltage of this product before use, and
do not insert the PoE network cable into the network port.
Details Images
